3 Gallon Resin Trap

Brand: BACOENG

BACOENG 3 Gallon/1.2 QT/2 QT Stainless Steel Resin Trap Vacuum Degassing Chamber Intruduction: Protect your equipment! These vacuum-sealed tanks are installed in the vacuum bagging process between the mold and the vacuum pump to capture excess resin that enters the vacuum line before it can damage your equipment. Resin

  • $44.99


To add this product to your wish list you must Sign In or Create an Account.


Description

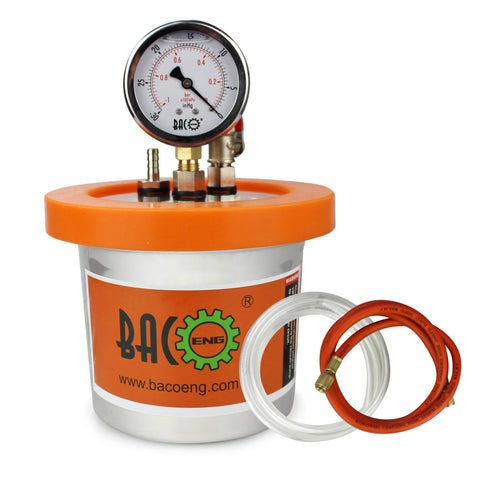

BACOENG 3 Gallon/1.2 QT/2 QT Stainless Steel Resin Trap Vacuum Degassing Chamber
Intruduction:
Protect your equipment! These vacuum-sealed tanks are installed in the vacuum bagging process between the mold and the vacuum pump to capture excess resin that enters the vacuum line before it can damage your equipment. Resin traps are an integral part of all vacuum infusion and vacuum bagging processes. Our Stainless Steel resin traps come equipped with clear lids that allow you to easily monitor resin accumulation.
Features:
  • Resin traps come complete with glycerin-filled vacuum gauge, fittings for use with 1/4" vacuum tubing,brass ball valve and instruction manual.
  • Capture excess resin and protect your pump!
  • Unique Catch Port Design: An additional hose can be installed at the port inside the tank to facilitate accurate collection of resin.
  • 5 Feet Reinforced Vacuum Hosing Connect Directly To Vacuum Pump 1/4" SAE.
  • Measuring range of vacuum gauge:0-29.25inHg
  • Silicone gasket to be used over 10,000 times without deterioration.
Safety Information:
If large amounts of mixed resin remain in the feed pot or accumulate in the catch pot, the resin can become very hot indeed. In extreme circumstances, the resin can actually start smoking as it reaches very high temperatures.
Keep an eye of the catch pot and wait for the exotherm to die down.
TIPS:
  • Apply mold release to all interior surfaces of the resin trap prior to lay-up for easy clean-up once the vacuum process is complete.
  • Additional containers can be placed in the large 3 gallon tank to collect the resin.
This Kit Includes:
1 × Stainless Steel Pot
1 × Clear Lid
1 × Glycerin-filled Gauge
1 × Air Manifold
1 × Resin Catch Hose
1 × Vacuum Hose
Chamber Size:
3 Gallon 9.8"(ID) × 9.8"(H)
1.2 QT, 4.3"(ID)× 3.9" (H)
2 QT, 5.1"(ID)× 4.3" (H)
